  • Specifications

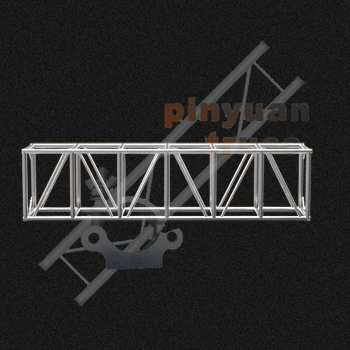

    • Product Name：aluminum screw truss
    • Product ID：005
    • 分享到：
    Print

Prev：Already the first page

Next：aluminum triangle screw truss

  • Details


  • SIZE:760*600/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 24m with max load 1.2ton


    SIZE:760*520/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 22m with max load 900kg


    SIZE:500*600/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 750kg


    SIZE:500*500/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 700kg


    SIZE:450*450/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 15m with max load 650kg


    SIZE:400*400/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 15m with max load 600kg


    SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 13m with max load 500kg


    SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 10m with max load 500kg
