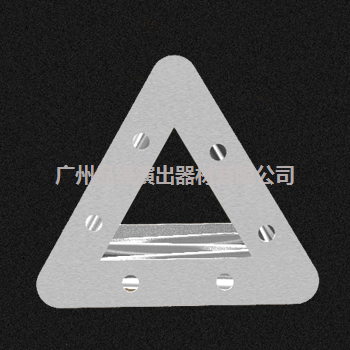

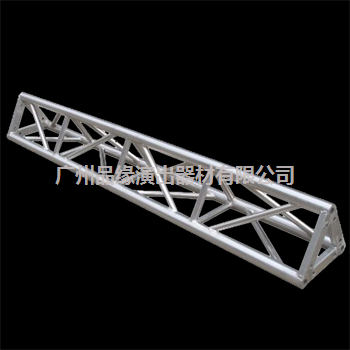

螺絲式桁架
桁架規格 :200*200 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達9米,滿負荷載重380kg.
SIZE:200*200/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 380kg
桁架規格 :300*300 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重550kg.
SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 550kg
桁架規格 :350*350 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重680kg.
SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 680kg
