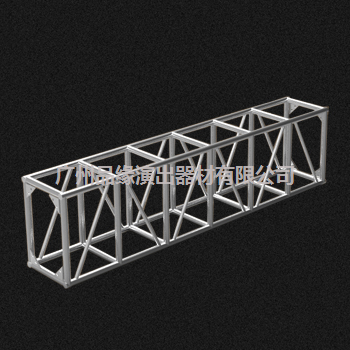

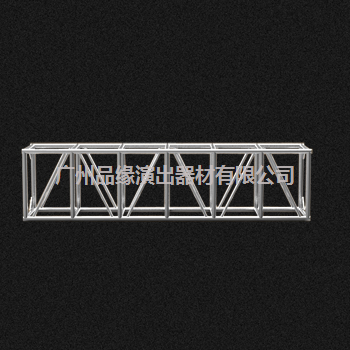

螺絲式桁架
螺絲式鋁闆桁架規格介紹：
規格 :760*600 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達24米,滿負荷載重1200kg.
SIZE:760*600/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 24m with max load 1.2ton
規格 :760*520 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達22米,滿負荷載重900kg.
SIZE:760*520/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 22m with max load 900kg
規格 :500*600 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達16米,滿負荷載重750kg.
SIZE:500*600/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 750kg
規格 :500*500 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達16米,滿負荷載重700kg.
SIZE:500*500/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 700kg
規格 :450*450 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達15米,滿負荷載重650kg.
SIZE:450*450/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 15m with max load 650kg
規格 :400*400 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達15米,滿負荷載重600kg.
SIZE:400*400/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 15m with max load 600kg
規格 :350*350 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達14米,滿負荷載重500kg.
SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 13m with max load 500kg
規格 :300*300 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ30mm*2mm,單根規則長度爲1米-4米,最長連接可達13米,滿負荷載重500kg.
SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice TubeΦ50mm*2mm Brace Φ30mm*2mm,the normal length for one pc is 1m-4m,it can be stretched to 10m with max load 500kg
